Haas VF-5 Fixtures

Sale price$0.00

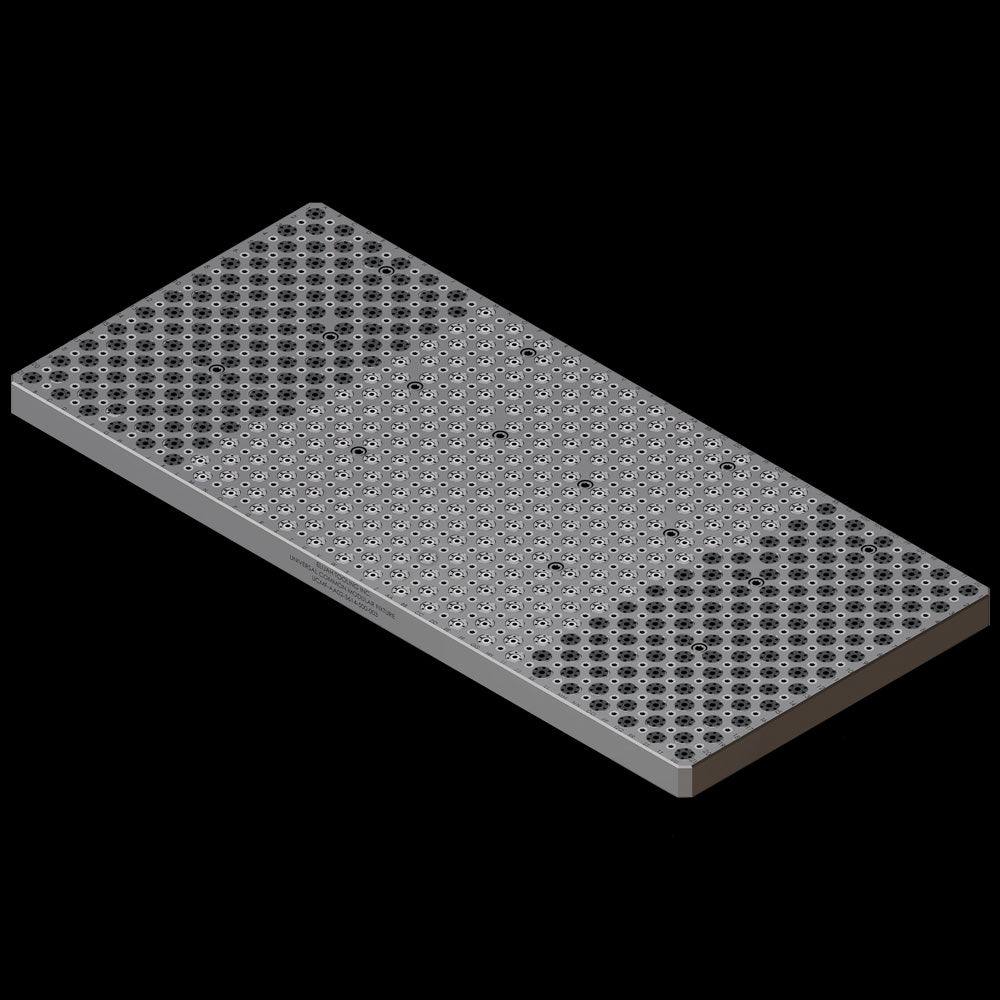

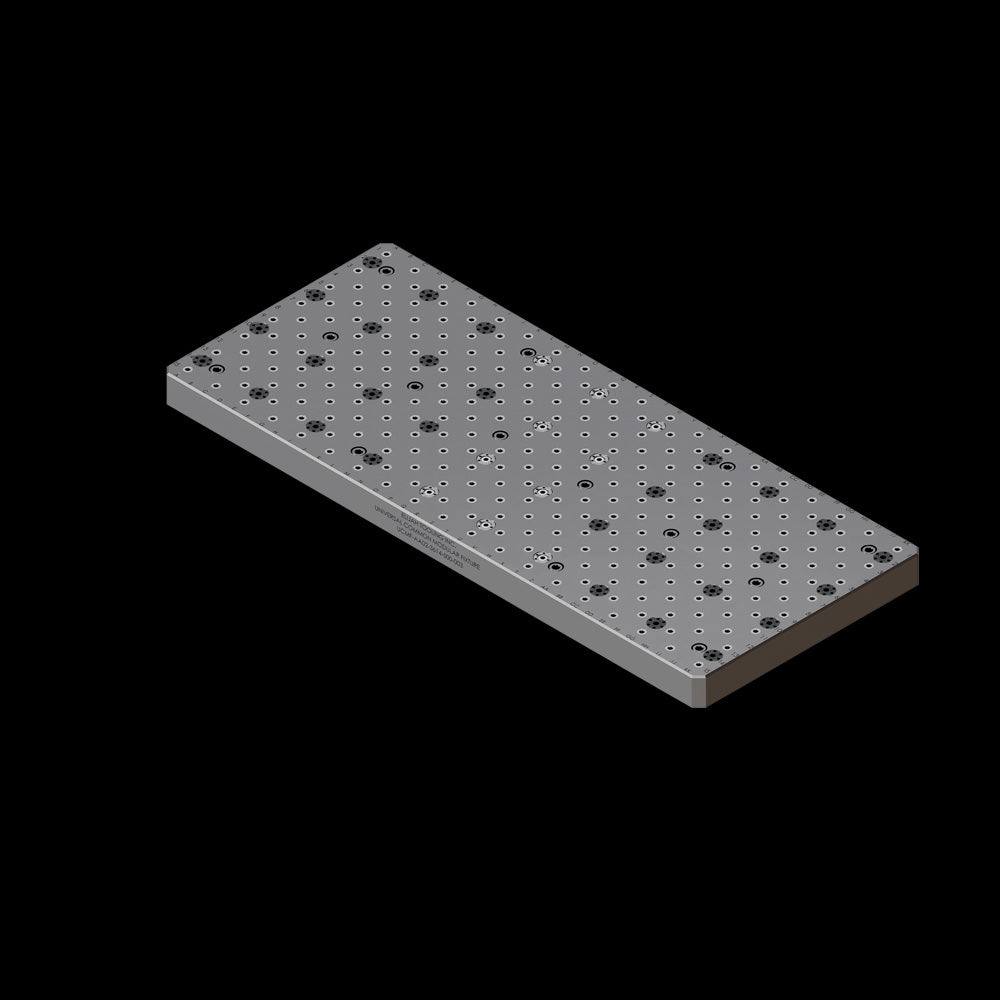

Style: Standard 52" X 23"
Invert-a-Bolt Spacing: High 1" X 2"
Invert-a-Bolt Quantity: 100%

NOTE: Our fixtures can be quoted and purchased by contacting the Elijah Tooling Team here. Please include a description of which plate and which options you are interested in.



Elijah Tooling Modular Fixtures are subplates that are typically used in a lean manufacturing environment, especially for high-speed machining to reduce machine cycle times. They consist of a tooling plate with threaded multi-purpose holes and Invert-a-Bolt fastener locations as well as additional vises.

Advantages of Elijah Tooling Modular Fixture:

  • Up to 90% more efficient load/unload times
  • Oversized fixtures maximize machining envelope capacity
  • Rigid part holding tools minimize vibration/chatter

Every Elijah Tooling Modular Fixture includes:

  • Customer Approval Drawings
  • 3D CAD Model
  • Row / Column Designator System
  • Inspection Report
  • Sturdy Wooden Box
  • Locating and mounting hardware including lift rings
  • Weekly Status report with Gant Chart





    Material Steel but available in other materials upon request.
    Precision Ground Yes
    Thickness 1.9" for regular / oversized, 2.45" for T-Slot
    Multi-purpose threaded hole size .500" with 1/2"-13 thread
    Invert-a-Bolt threaded hole size 1"-12 LH thread

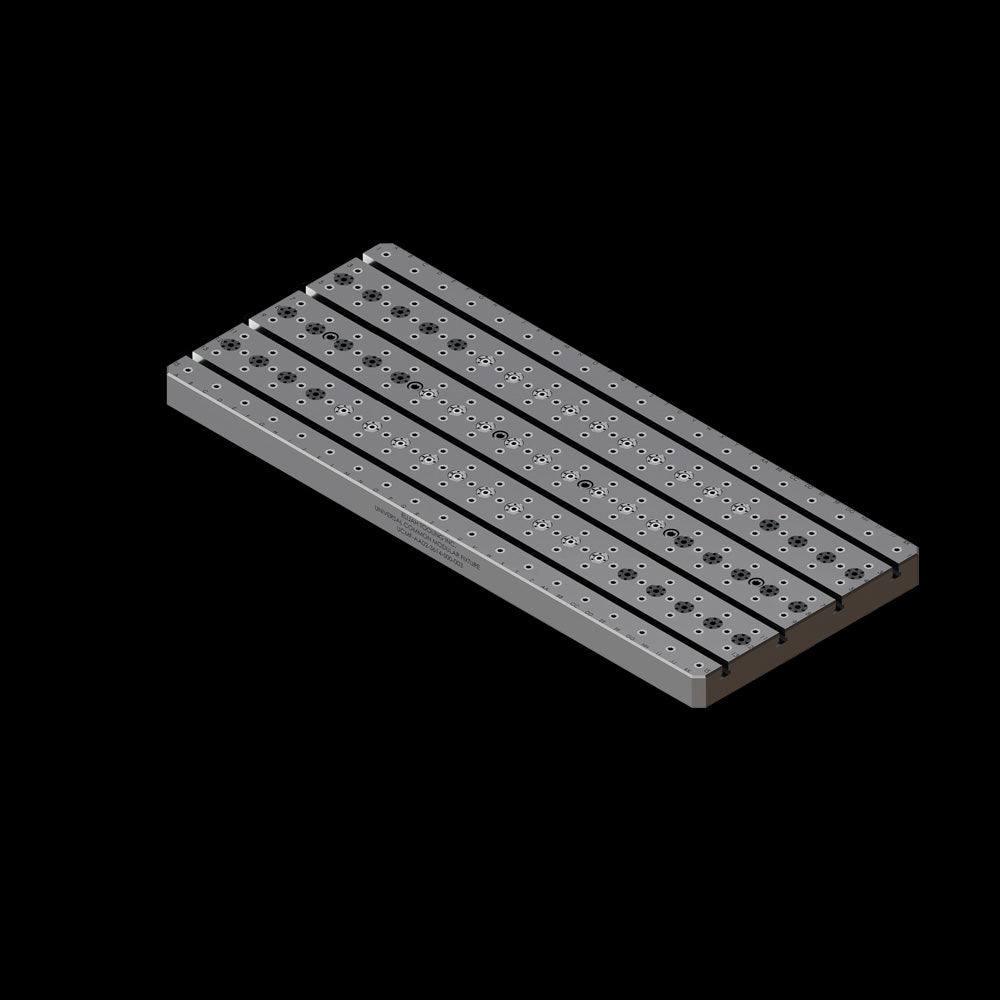

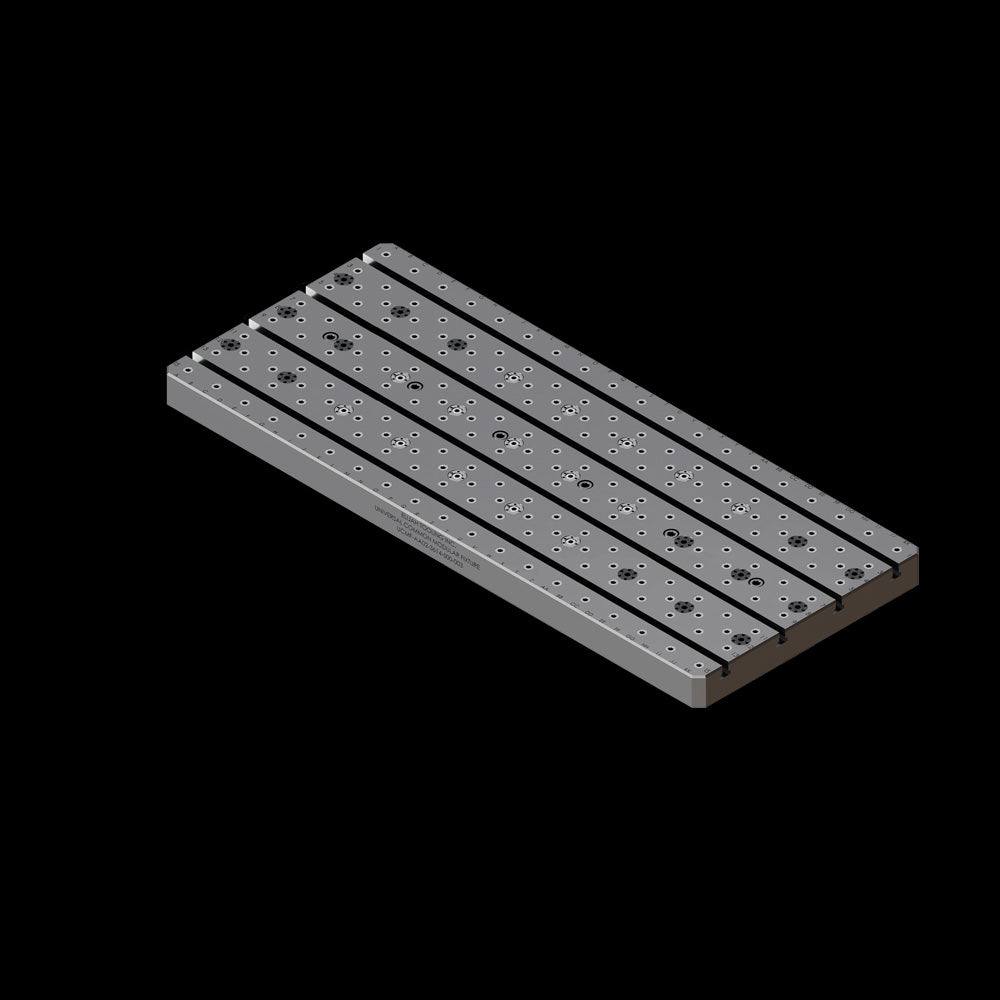

    T-Slot size 18mm
    Typical Build Time 6-8 weeks
