EZE-VISE™ ULTIMATES ADJUSTABLE MILLING VISE

Sale price$869.95 Regular price$1,157.85
Save $287.90
Style: EZE-VISE™ Ultimate Adjustable Vise

NOTICE: THIS IS A DISCONTINUED PRODUCT, BUT WE WILL CONTINUE SELLING THIS ITEM UNTIL THERE IS NO REMAINING STOCK. WE CANNOT ACCEPT RETURNS OR REFUNDS OF THIS ITEM.



The ultimate weapon in your toolbox isn't just a good milling vise - it's a vise that adapts to your changing needs, and continuously solves workholding problems with your setup.

This EZE-VISE™ Ultimates Vise is modular in nature and can be mounted to our IVB fixtures or other legacy workholding fixtures. Choose from our Invert-A-Bolt™ Fasteners and locators or even common socket head cap screws for mounting. Its size and shape allow you to add on additional vise elements as your needs grow.

30 Day Risk Free Trial! Money Back Guarantee.

Features:

  • Modular in nature and grows with your needs
  • Low profile
  • Positive location, all 3-axes
  • Quick-change capable in a modular fixture
  • Can be held with Invert-A-Bolt™ fasteners or (legacy) socket head cap screws
  • Hardened steel body
  • Hardened Steel 5/8" ACME drive screw
  • Serrated Grippers - Standard & replaceable, optional configurations available
  • 1.000"+/-.001" locating height eliminates sacrifice plate (matching supports available)
  • Low profile and reduced size considerations provide ultimate flexibility
  • This multi-faceted vise can be held by IVB Fasteners or legacy bolts in a standard 2"x2" pattern. Optionally, it can be located with dowel pins, XZertZ™ retractable dowel pins or legacy types.
  • Vise Jaw: Hardened Steel, Reversible, Serrated/Smooth Jaw
    System: 1/2"
  • Double-Sided, Fixed, Modular, Low-profile vise, for machining multiple parts at one time.



➔ View Full EZE-VISE ULTIMATE Video Playlist



AVAILABLE SIZES

EZE-VISE™ Ultimates Workholding System

SKU

Description Guide CAD

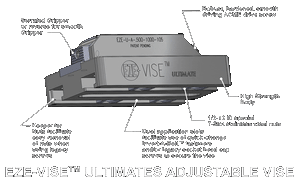

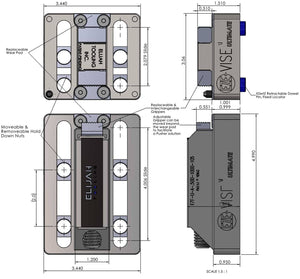

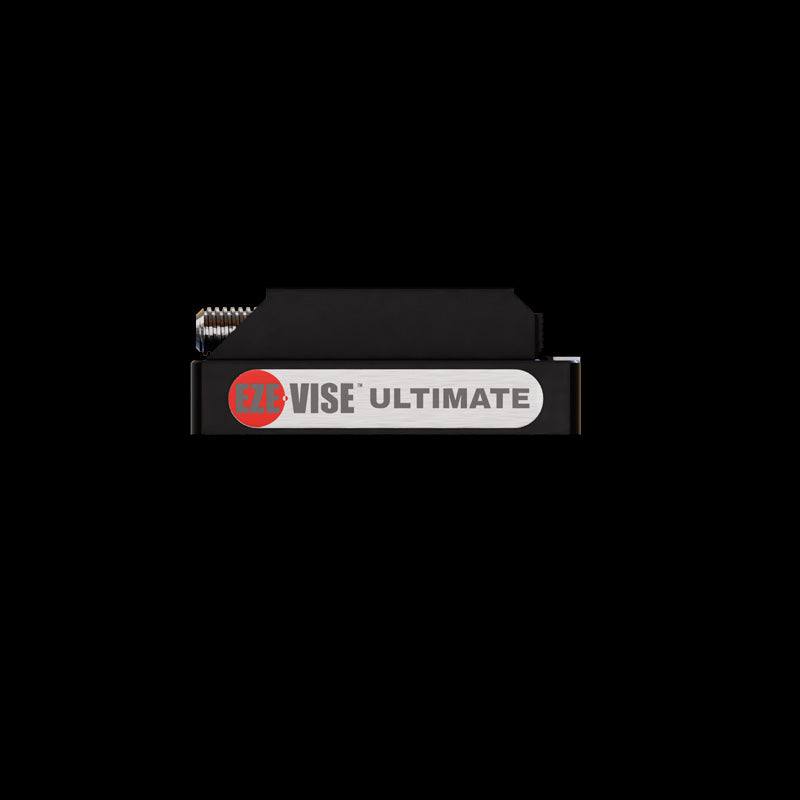

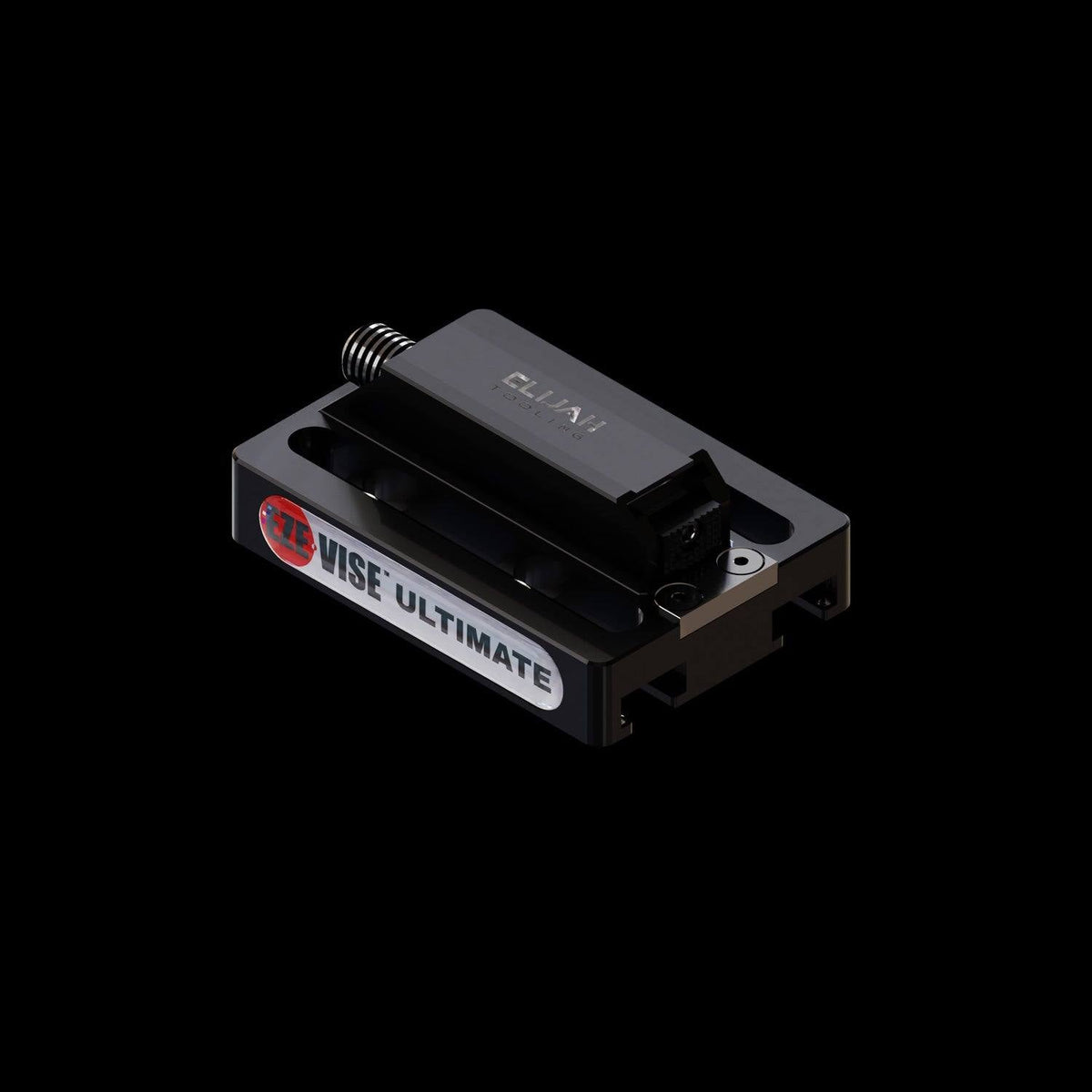

 EZE-U-A-.500-1000-105

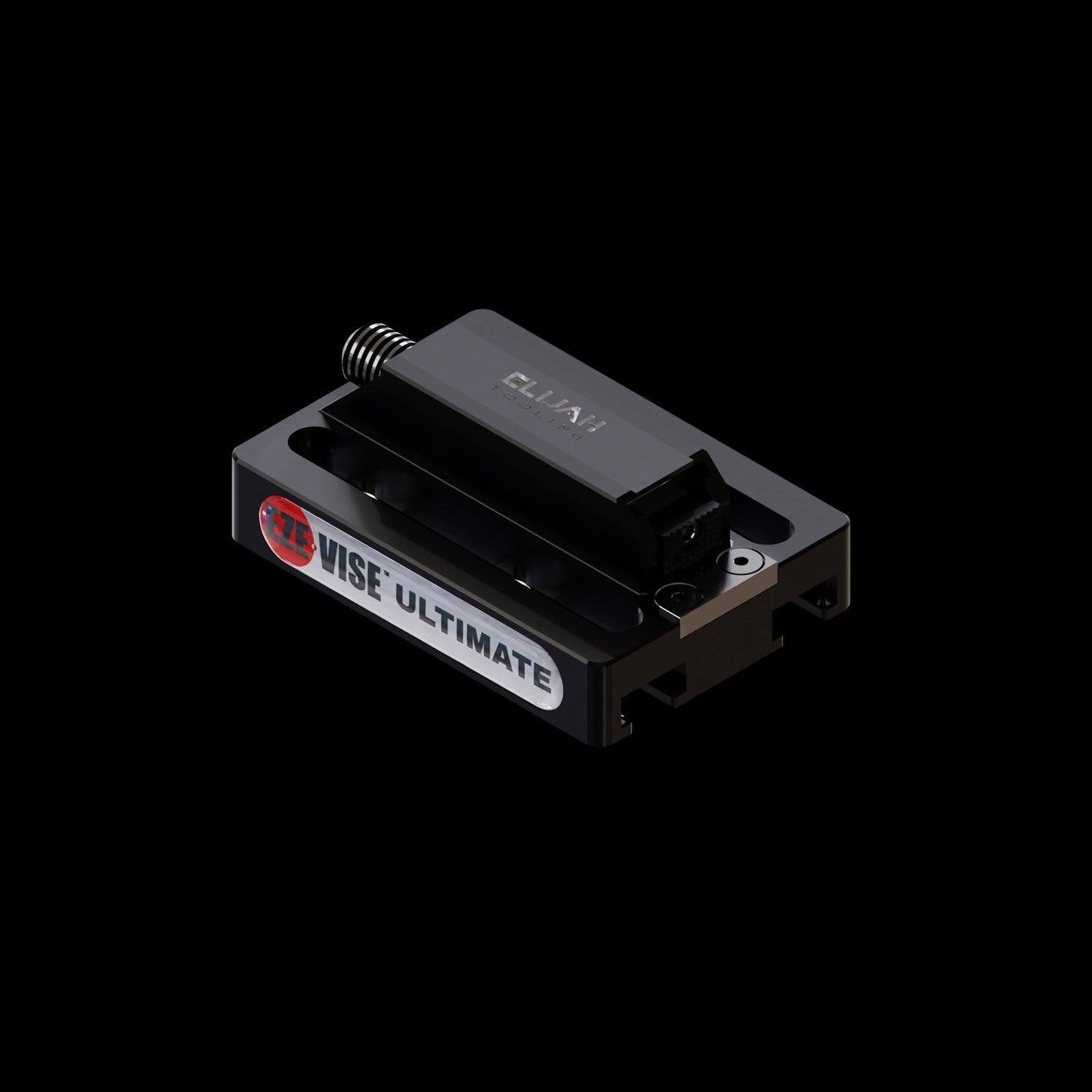

3.44"x4.99" x1.875" Adjustable vise unit.

1" ±.0001 locating height with replaceable & reversible gripper (installed as a serrated gripper).

Adjustable pusher unit can extend beyond the vise body to provide a standard pusher configuration.

5 lbs.

CAD

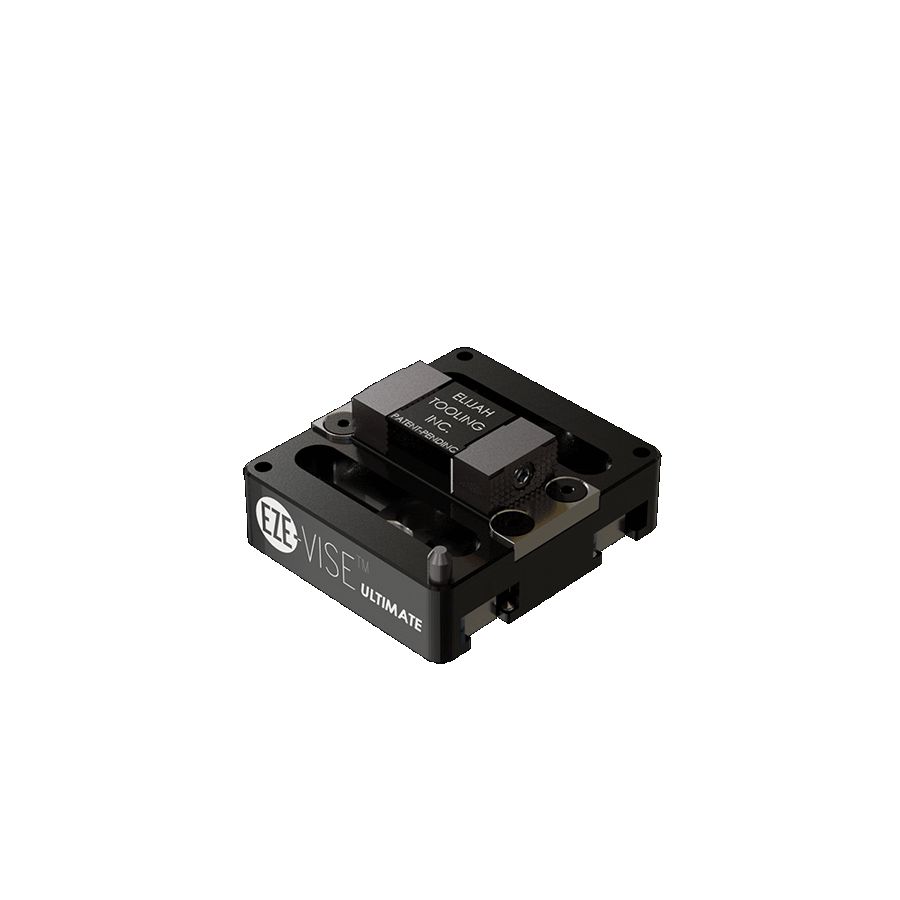

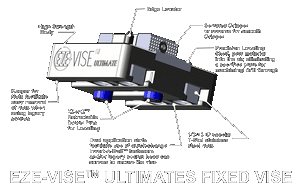

EZE-U-F-.500-1000-005

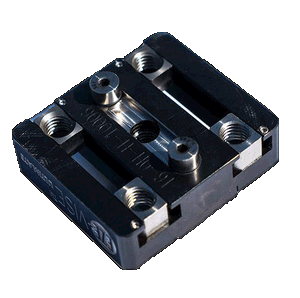

3.44"x3.06" x1.510" fixed, double sided vise unit.
1" ±.0001 locating height with replaceable & reversible gripper (installed as a serrated gripper).
3 lbs.

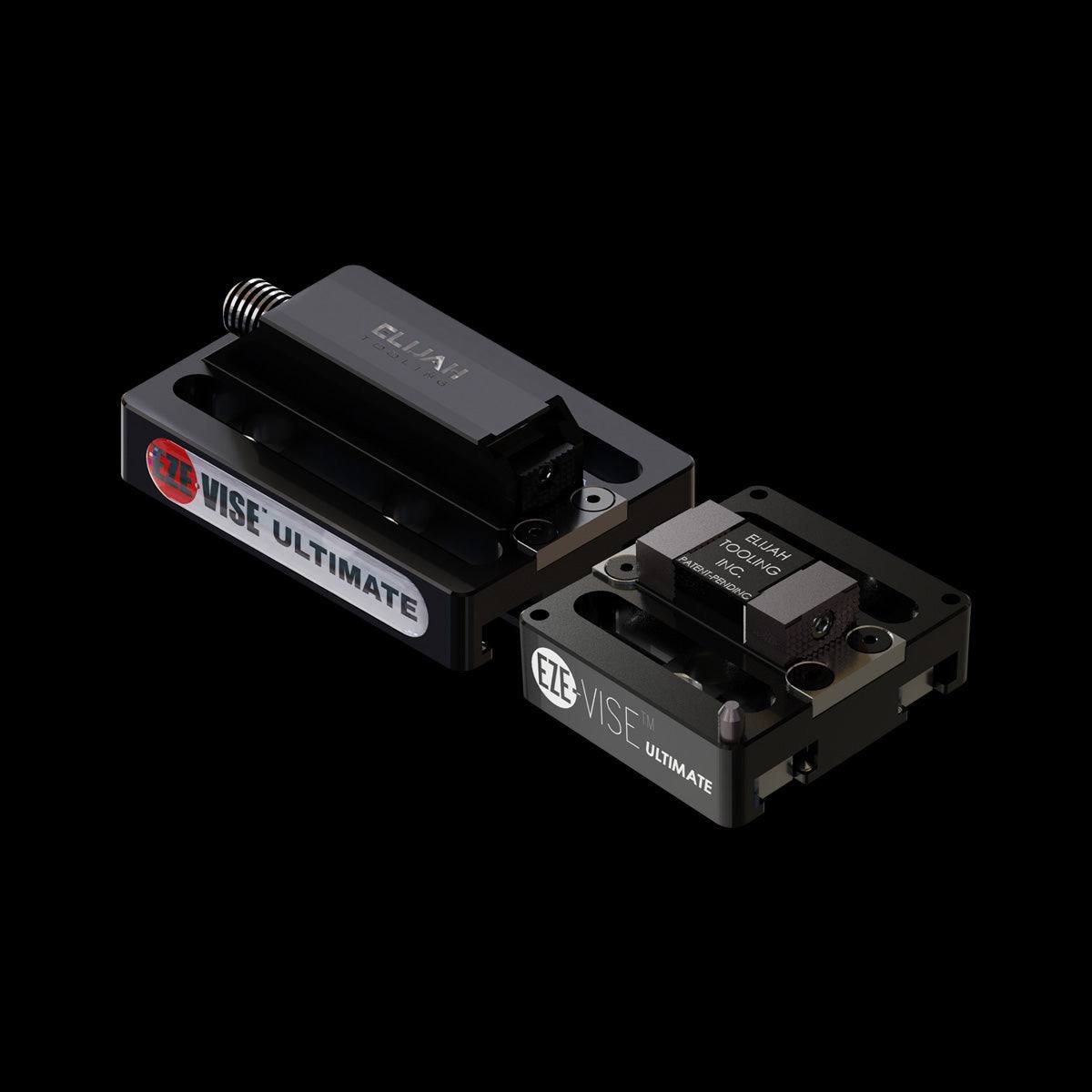

EZE-U-VISE-.500-1000-003
Description: (1) Fixed and (1) Adjustable Vises.
8 lbs.
ASK

EZE-U-VISE-.500-1000-005

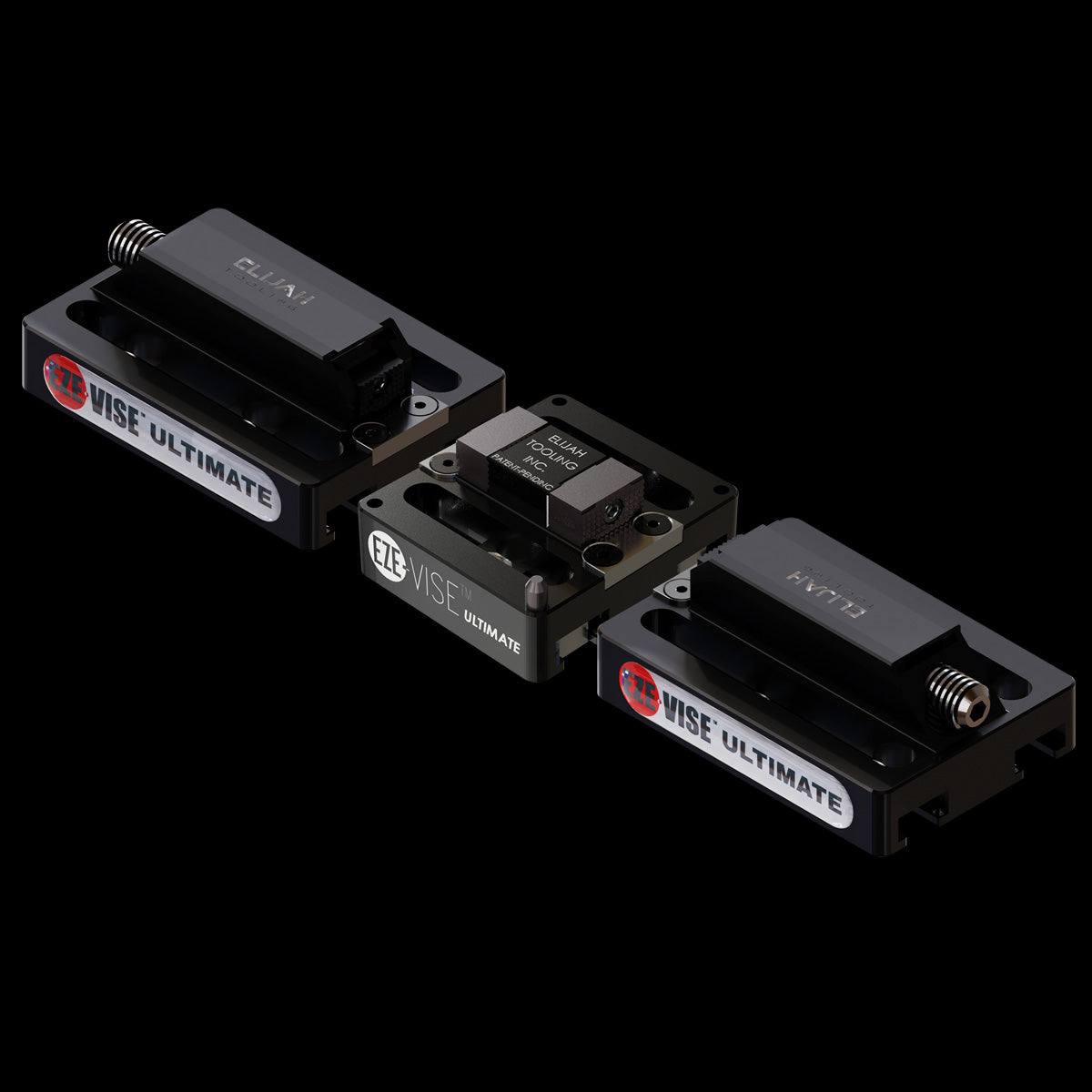

Description: (2) adjustable vises with (1) fixed vise.
13 lbs.
ASK
