    Haas VF-4 Fixtures

    Invert-a-Bolt Spacing
    Invert-a-Bolt Quantity
    IMPORTANT: All pricing on Haas custom fixture pages are for reference only, these pages exist as a pricing tool not for directly purchasing modular fixtures; for exact pricing, please contact our team!
    NOTE: Our fixtures can be bought as is, but if you'd like a custom design, contact us here and we'll create a custom fixture with you.

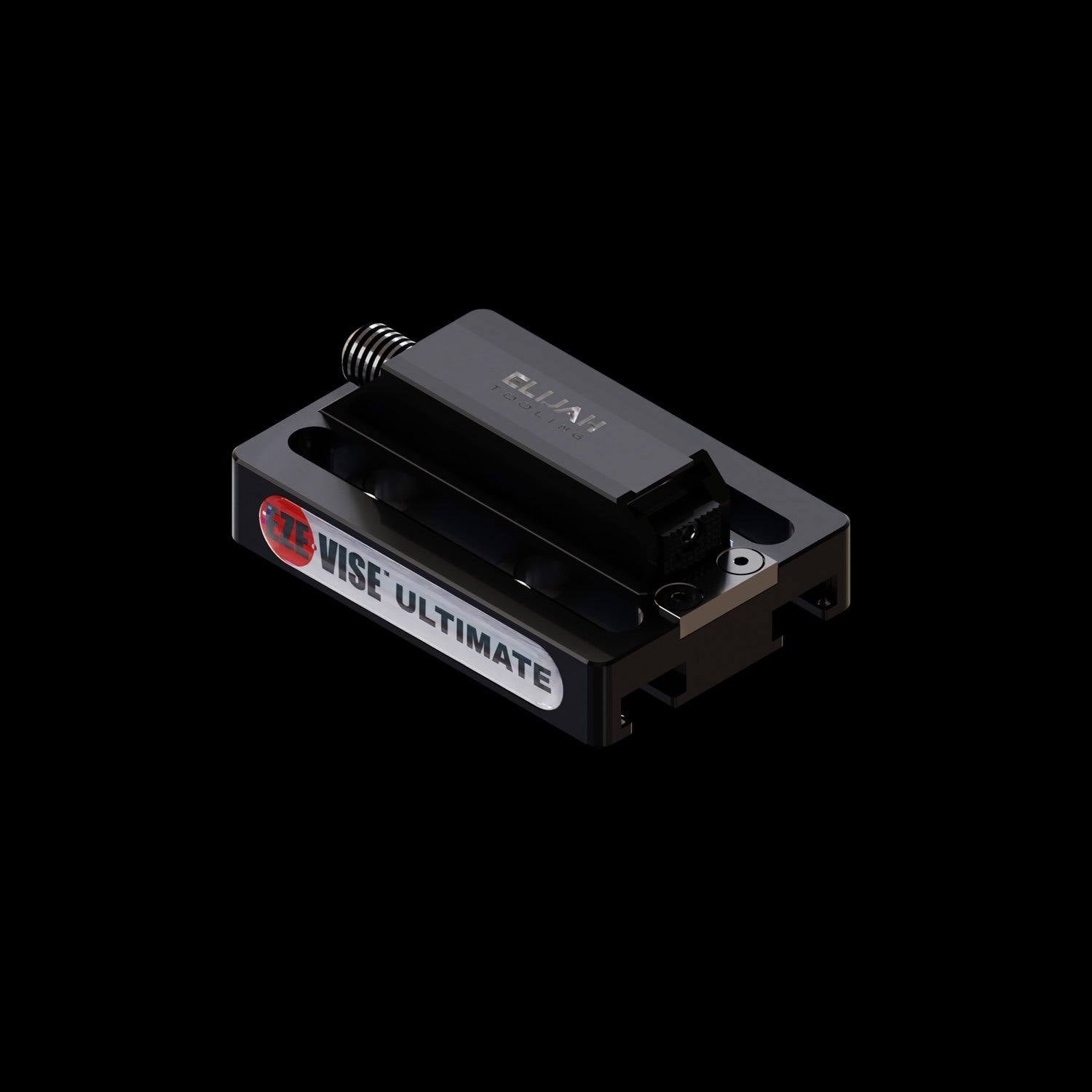

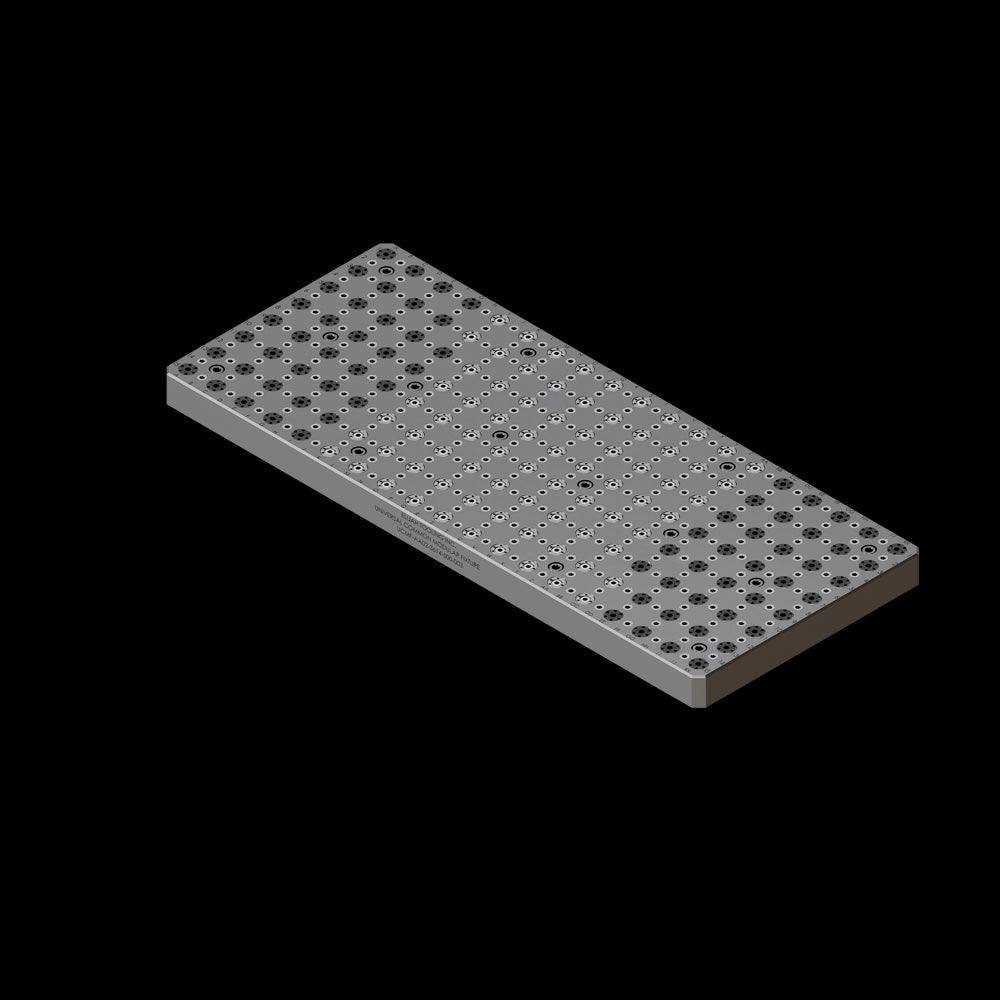

    Elijah Tooling Modular Fixtures are subplates that are typically used in a lean manufacturing environment, especially for high-speed machining to reduce machine cycle times. They consist of a tooling plate with threaded multi-purpose holes and Invert-a-Bolt fastener locations as well as additional vises.

    Advantages of Elijah Tooling Modular Fixture:

    • Up to 90% more efficient load/unload times
    • Oversized fixtures maximize machining envelope capacity
    • Rigid part holding tools minimize vibration/chatter

    Every Elijah Tooling Modular Fixture includes:

    • Customer Approval Drawings
    • 3D CAD Model
    • Row / Column Designator System
    • Inspection Report
    • Sturdy Wooden Box
    • Locating and mounting hardware including lift rings
    • Weekly Status report with Gant Chart



      MaterialSteel but available in other materials upon request.
      Precision GroundYes

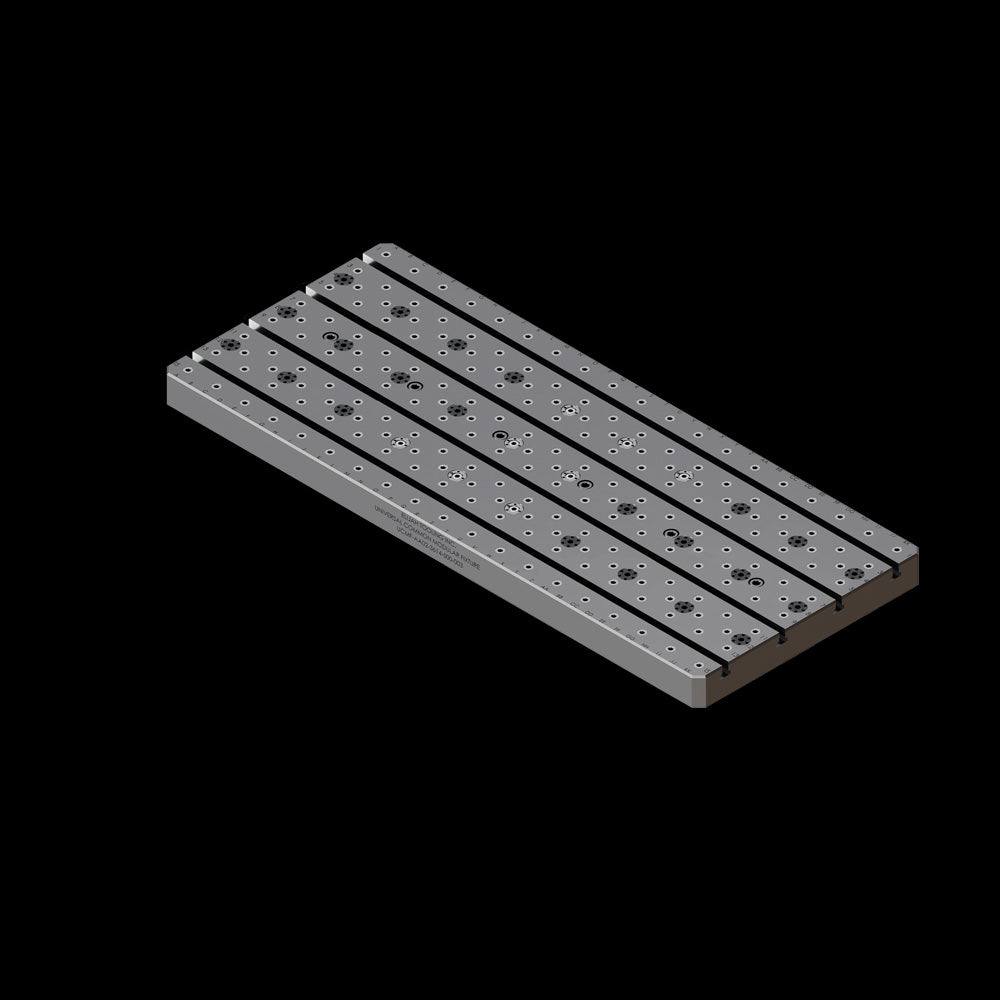

      Thickness1.9" for regular / oversized, 2.45" for T-Slot
      Multi-purpose threaded hole size.500" with 1/2"-13 thread
      Invert-a-Bolt threaded hole size1"-12 LH thread
      T-Slot size18mm
      Typical Build Time6-8 weeks
