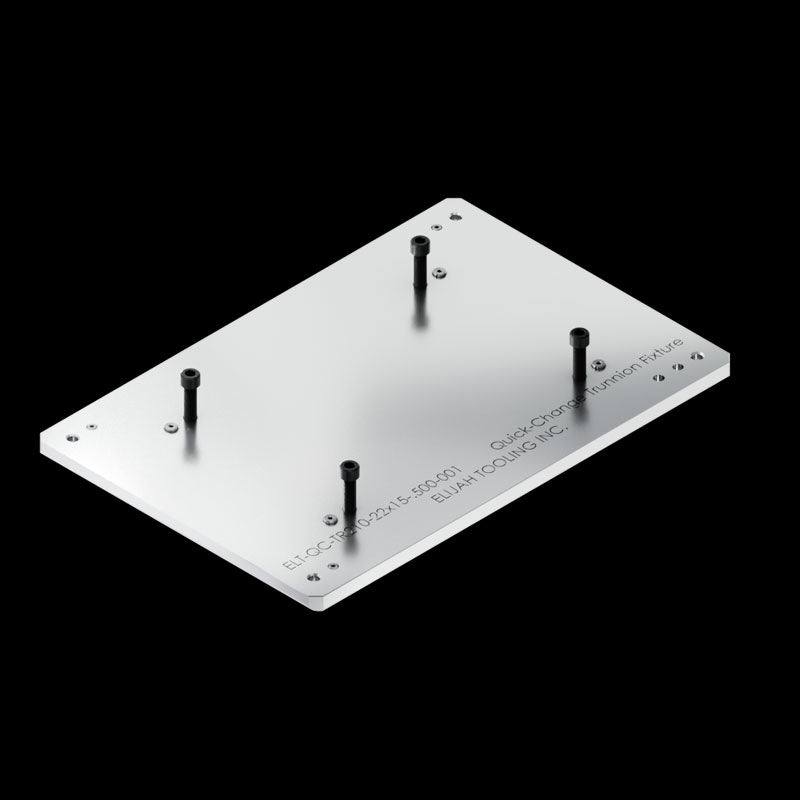

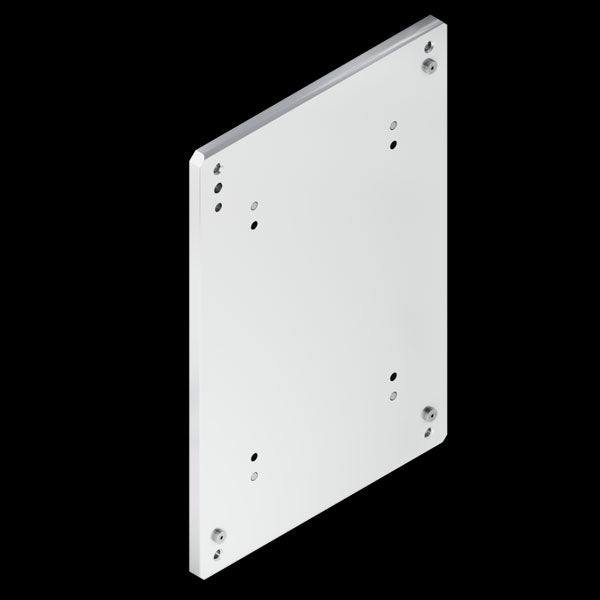

Quick-change base plate for machine trunnion. Repeats within +/-.0010. Change the trunnion on/off in 3 minutes.  Includes all necessary hardware, as well as detailed instructions/ NC Program used to prep the trunnion to accept the plate.

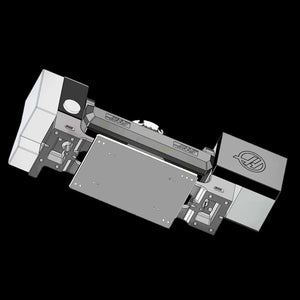

*Base plate shown for Haas TR-210 Trunnion

CAD

➔ View Full QUICK-CHANGE BASE PLATE FOR TRUNNION Video Playlist
