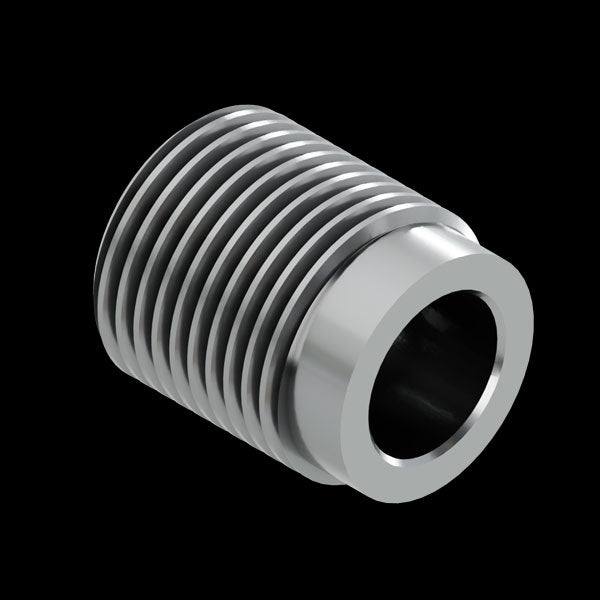

Stainless Steel Multi-purpose Hole Plug For AA02 Type Invert-A-Bolt™ Fasteners (IVB)



Hole plugs are used to fill in the holes in the Universal Common Modular Fixture (UCMF) when the holes are not in use.

By plugging the holes, operators will spend less time in setup and part changeover by not having to blow the holes out.

  • Available for multi-purpose holes (bored/ threaded or bushed/ threaded inserted)
  • Available for IVB Fastener holes. Plugs have left-hand OD threads.
  • Available in different materials: plastic, aluminum, stainless steel for the appropriate application
  • Screw in with a hex wrench or applicable insertion tool for IVB fastener hole locations.
  • 1 Dia. IVB Plug (1"-12 LH) OD
  • Thread: 1/2"-13 ID
  • Height: 1.15"
  • Material: Stainless Steel
  • Insertion Tool P/N: AA02-004-004
