12mm Metric Invert-a-Bolt™ Fasteners

$46.95 $49.42

Specifications
Videos

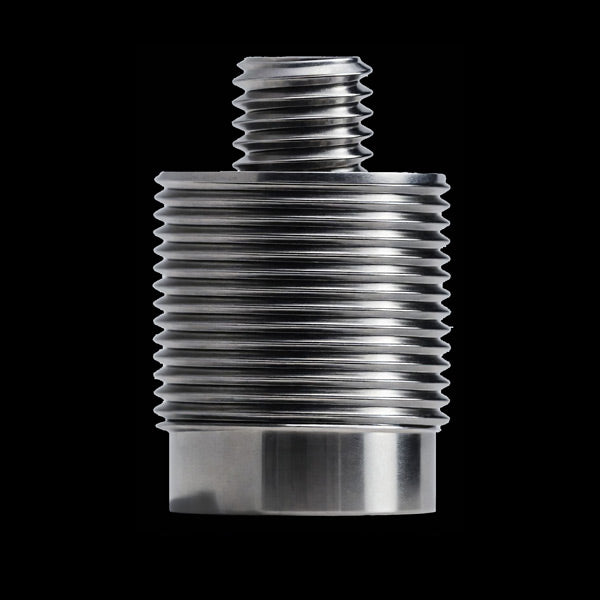

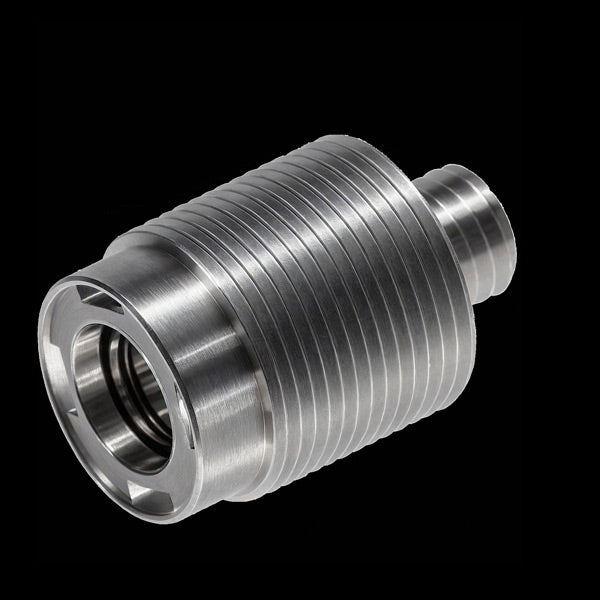

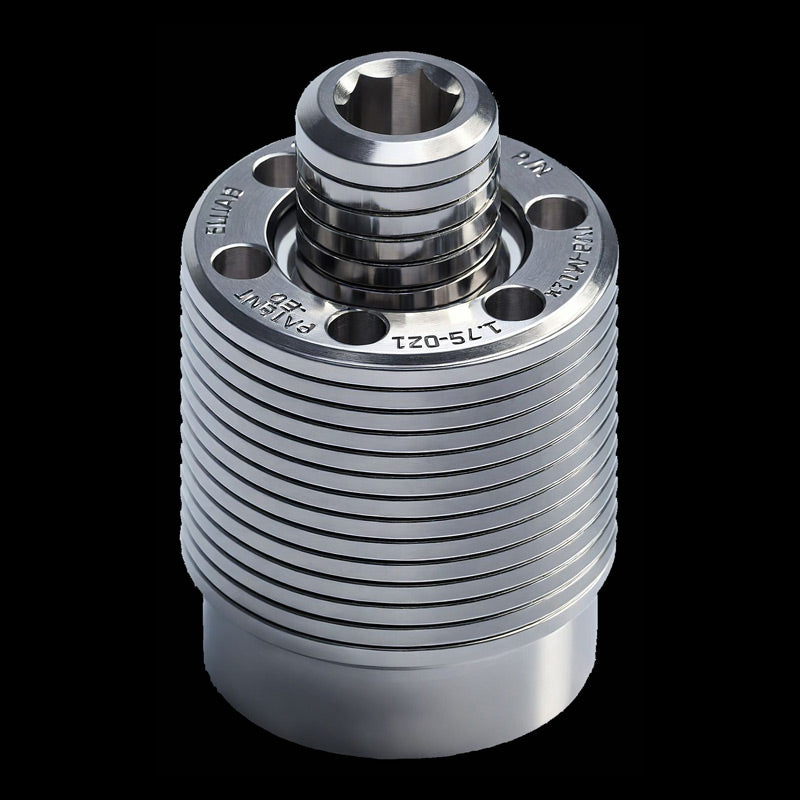

12mm Metric Fastener

SKU	IVB-M12x1.75-021
INSERTION TOOL	AA02-004-004
STUD	M12x1.75 6g
ENGAGEMENT	10mm
HEX SIZE	M6
HOUSING	M25x1.5 6g LH
HOUSING LENGTH	29mm
MINOR DIAMETER	23.3mm
PLATE SIZE	32mm
TORQUE	40 ft.lb.
MATERIAL	STAINLESS STEEL
INSTALL GUIDE	Install Guide
CAD	CAD

Invert-a-Bolt fasteners are changing manufacturing processes worldwide.

This flush mounted back bolt system allows manufacturers to eliminate clamps and bolts when machining parts by securing stock and work-holding materials from underneath. This “flat plate” system contributes to maximum flexibility of the fixturing, providing improved work-holding solutions which ultimately leads to more parts produced, higher safety and less waste. Back bolts eliminate the need for costly clamps and vises and dramatically reduced setup times, which allows you to machine more parts faster with less risk of damage. Back-bolt systems can dramatically affect your pocket book too. More parts means more efficiency, better cycle time and more sales.

Why IVB Fasteners Are Right For You

Replace your clamps and screws with Invert-A-Bolt™ (IVB) Fasteners. These unique, flush-mounted back bolt fasteners eliminate obstructions to machining, reduce vibration in your setup, and lower your cost by cutting setup times, reducing waste and providing faster change outs.

Superior holding ability

Reduces stock size

Reduces the number of setups

Eliminates Bridge Fixtures

Reduces programming headaches

Works well with most modular components

IVB Fasteners make your workholding projects easier.

Stop wasting time looking for the "right" bolt again. Stop wasting time by grinding a bolt to size again. Stop interrupting the machining process to change clamps. Stop introducing warp creating stress into your parts due to excessive clamping.

Run more parts

Reduce down-stream costs

Eliminate wasted time used to change clamps

Reduce obstructions in multi-axis machining

IVB Fasteners are simple to use and install, embedded in the fixture for easy access.

These back bolts are always available in the fixture, with standardized stick-out. Simply screw the larger diameter (the housing) into the fixture plate and bring the inner diameter (the stud) up into your stock material for a superior work-holding solution.

Raise and lower in seconds with a pneumatic driver

Flush mount means that they are there when you need them and hidden when you don't

Various stud & housing sizes
