    EZE-DRIVE™ ZIPBUSHING™ PRECISION THREADED LOCATOR BUSHING

    SKU

    Replace standard bushings and threaded inserts today with smarter products that skyrocket your productivity.

    This patented all-in-one product replaces a coaxially designed bushing and threaded insert, used to repeatably position and hold at the same time and in the same location. Sometimes referred to as a multi-purpose hole, this one product features the ability to use multiple workholding products at one location: dowels, retractable dowel pins, screws, and shoulder screws. The ZipBushing™ Precision Threaded Locator Bushing is easy to use, easy to repair, and incredibly fast to install/remove due to the EZE-DRIVE™ star pattern teeth in the top of the product.

    Our EZE-Drive™ threaded inserts and ZipBushing™ Precision Threaded Locator Bushings make work-holding duties go so much faster. Check out our videos to see just how fast and easy they are to use.



    ➔ View Full ZIPBUSHING Video Playlist






    Elijah Tooling Patented Multi-Purpose Hole Product

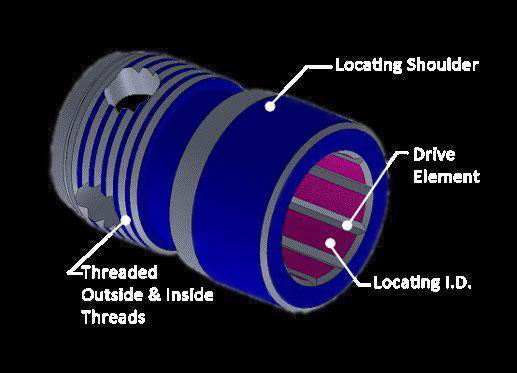

    A Bushing and a Threaded Insert Combined Into One

    All the functionality of bushings and threaded inserts while being much simpler to install. Only one piece to deal with, no need to worry about alignment issues.

    Install in Seconds

    EZE-Drive™ system makes installation a breeze; all you need is an impact wrench, our ten-point driver, and a few seconds.

    Effortless Removal

    ZipBushings™ can be removed just as easily as they can be installed.  You can relocate them as much as you need and never risk getting a threaded insert or a bushing stuck again. They are available in a loose or tight tolerance and are self-tapping in soft metals.



    AVAILABLE SIZES

    SKUDESCRIPTIONDRIVER CADGUIDE
    ELT-EZD-.500x.752-1

    ID: .5001/.5006,       OD: .7514/.7518

    Repeats within .0005"

    Finish varies.

    1/2-13 Thread ID

    M18x1.5 Thread OD

    1.12 OAL

    DRIVER-1CAD.500-1
    ELT-EZD-.501x.750-1

    ID: .5007/.5013,      OD: .7501/.7505

    Repeats within .0005"

    Finish varies.

    1/2-13 Thread ID

    M18x1.5 Thread OD

    1.12 OAL

    DRIVER-1CAD.501x.750-1
    ELT-EZD-.501x.752-1

    ID: .5007/.5013,       OD: .7514/.7518

    Repeats within .0005"

    Finish varies.

    1/2-13 Thread ID

    M18x1.5 Thread OD

    1.12 OAL

    DRIVER-1CAD.501-1
    ELT-EZD-M12XM18-1

    ID: M12.015/M12.033    OD: M18.051/18.076

    Repeats within .0005"

    Finish varies.

    M12x1.75 Thread ID

    M18x1.5 Thread OD

    28.5mm OAL

    DRIVER-3CADM12-1
    ELT-EZD-.500x.789-3

    ID: .5001/.5006,     OD: .7886/.7890

    Repeats within .0005"

    Finish varies.

    1/2-13 Thread ID

    M18x1.5 Thread OD

    1.12 OAL

    DRIVER-1CAD.500-3
    ELT-EZD-.501x.789-3

    ID: .5007/.5013,       OD: .7886/.7890

    Repeats within .0005"

    Finish varies.

    1/2-13 Thread ID

    M18x1.5 Thread OD

    1.12 OAL

    DRIVER-1CAD.501-3
    ELT-EZD-.500x.826-5
    ID: .5001/.5006,
       OD: .8260/.8264
    Repeats within .0005"
    Finish varies.
    1/2-13 Thread ID
    M18x1.5 Thread OD

    1.12 OAL
    DRIVER-1CAD.500-5
    ELT-EZD-.501x.826-5

    ID: .5007/.5013,     OD: .8260/.8264

    Repeats within .0005"

    Finish varies.

    1/2-13 Thread ID

    M18x1.5 Thread OD

    1.12 OAL

    DRIVER-1CAD.501-5

    USE AT YOUR OWN RISK.  DO NOT APPLY IN EXCESS OF 90 FT.LBS. FOR MATING SCREW.
