1/2in. AA02 OR AA03 STYLE INVERT-A-BOLT™ FASTENERS

MEDIUM/HEAVY DUTY FASTENER

Want to reduce your cycle time?  Your setup time? Need a great quick-change solution? The Elijah Tooling Patented Invert-A-Bolt™ work-holding Fastener is designed to meet your precision work-holding needs. Let's explore why this innovative fastener is a must-have for your machining processes:

• Secure Thread Holding: This work-holding captive fastener is expertly crafted to securely hold threads, ensuring that your workpieces stay firmly in place, no matter the complexity of your machining projects.  With a significant shear/ tensile capability you can depend upon this product to robustly hold the part, or fixture, or other tooling device without worry.

• Quick and Easy Setup: With its innovative design, this fastener is used to eliminate clamps and bolts from work-holding. That's setups, and the associated time. Quick-change your part - unique in the marketplace - as well vises, tooling, or plates and realize significant setup savings.

• Exceptional Durability: Crafted from high-quality materials, this stainless-steel fastener is built to withstand the demands of CNC machining, ensuring long-lasting and reliable performance.

• Reduced Machining Risk: The small footprint presents less opportunity to hit the fastener - a type of clamp - saving your tools and spindle from damage.

• Seamless Integration: These fasteners are often used to standardize work-holding, which leads to big savings. They also contribute to reliably repeatable setups in which there is no lost time or need for setting up over and over.

• Enhanced Workpiece Accessibility: The Invert-a-Bolt™ design allows for improved access to various sides of the workpiece, optimizing machining capabilities and minimizing the need for repositioning.  Very often the fasteners are used in multi-axis machining where clearance and accessibility play a significant role in lowered cost.

When quality clamping and efficiency are paramount, the Elijah Tooling Work-Holding Invert-a-Bolt™ Fasteners stands out as the ideal solution. Invest in this innovative fastener to elevate your CNC machining with metric threads, reduce setup times, and ensure consistent, high-quality results.

Quantity Discounts:

AVAILABLE SIZES

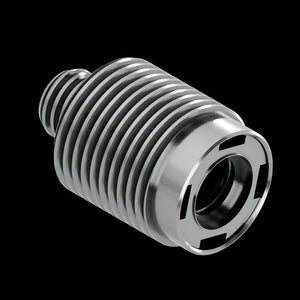

1/2" Fastener

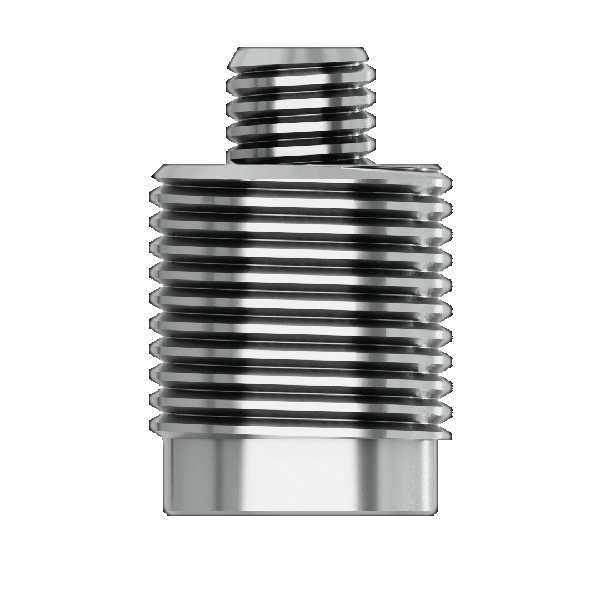

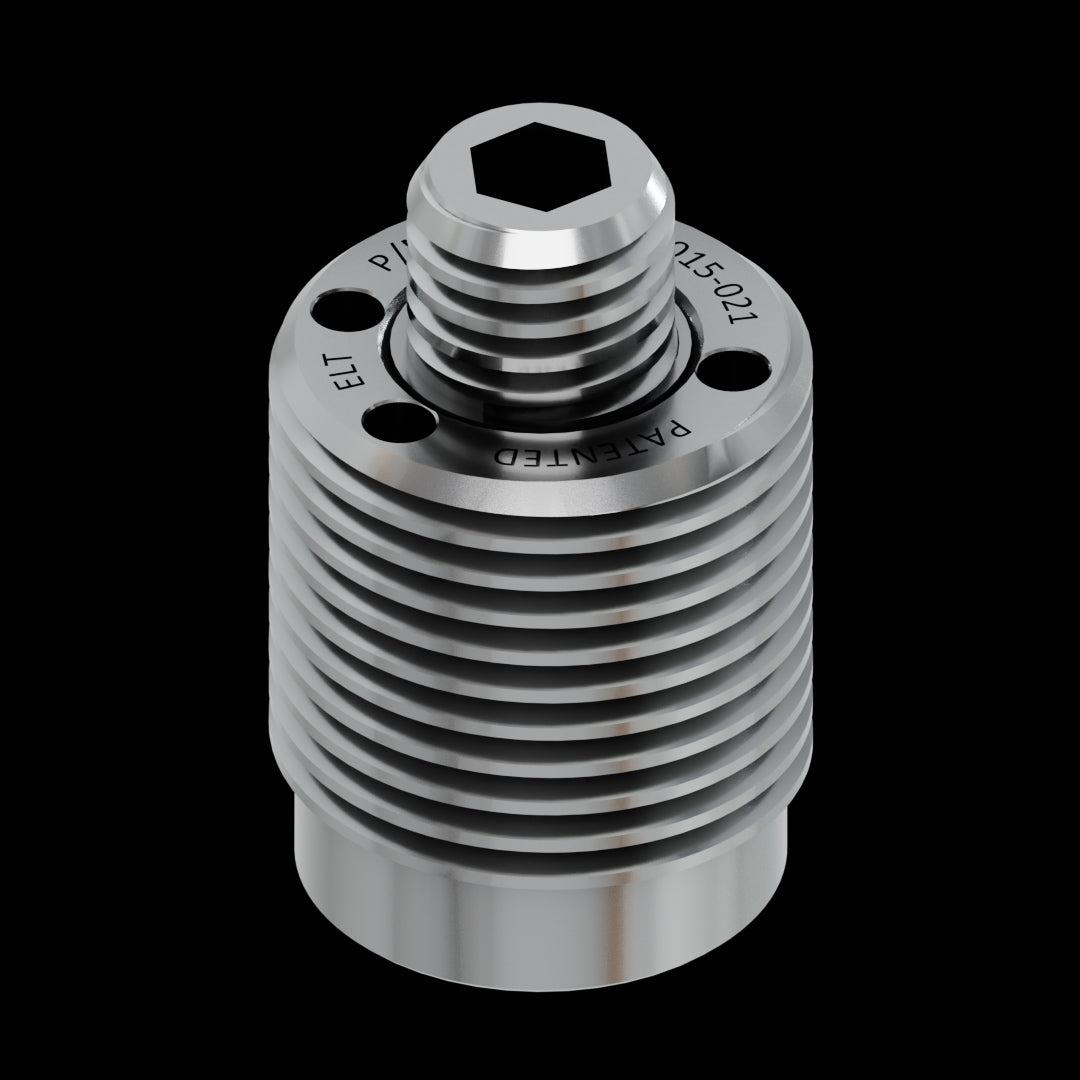

SKU: Select Above	AA02-005-021	AA02-015-021	AA03-015-021

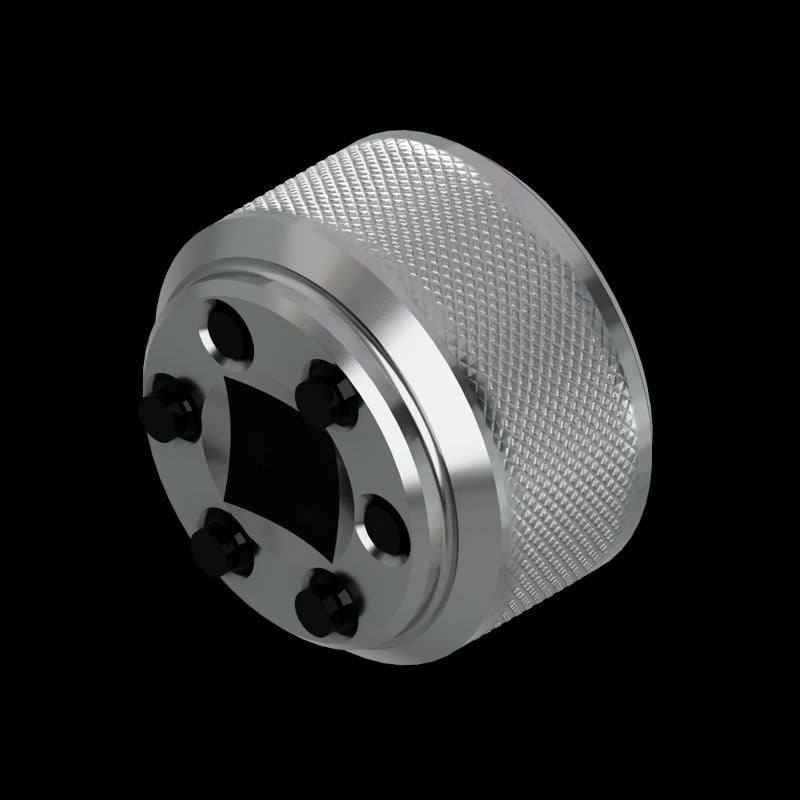

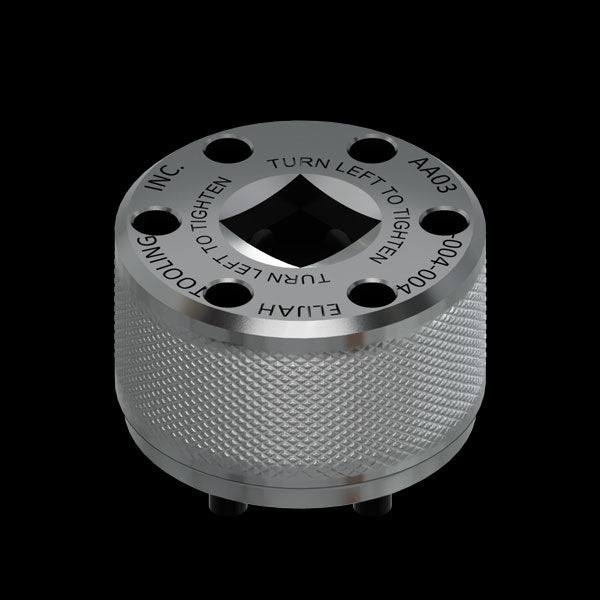

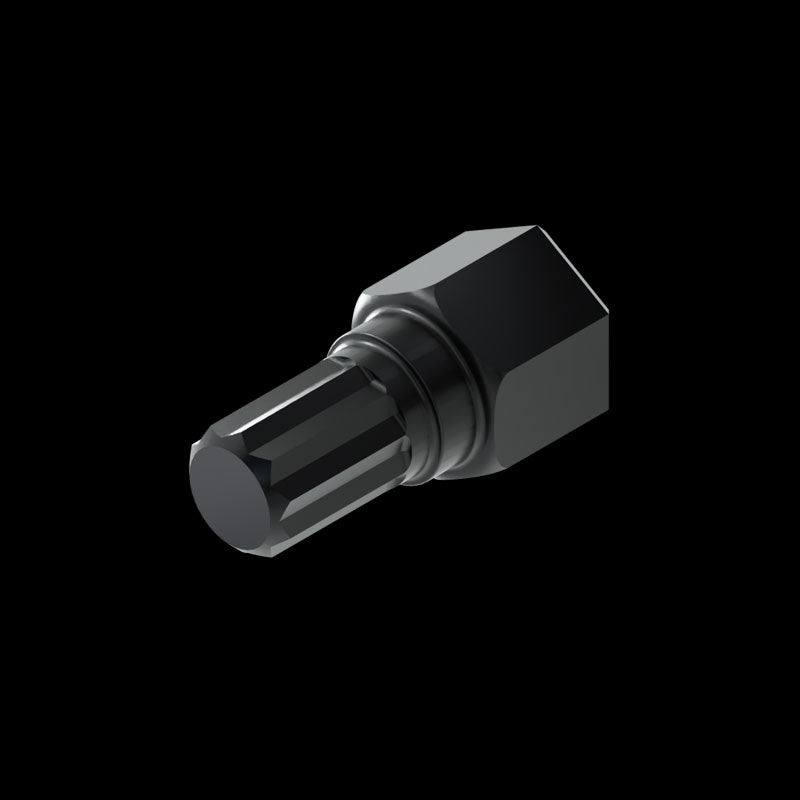

INSERTION TOOL	AA02-004-004	AA02-004-004	AA03-004-004
STUD	1/2"-20	1/2"-13	1/2"-13
ENGAGEMENT	.29"	.385"	.385"
HEX SIZE	1/4"	1/4"	1/4"
HOUSING	1"-12 LH	1"-12 LH	1 1/4"-12 LH
HOUSING LENGTH	.900"	1.150"	1.150"
MINOR DIAMETER	.899"	.899"	1.149"
MIN. PLATE SIZE	1.00"	1.25"	1.25"
TORQUE	64 ft. lbs.	64 ft. lbs.	64 ft.lbs.
MAX TENSILE STRENGTH	11,000 lbs.	11,000 lbs.	14,000 lbs.
MATERIAL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
DOWNLOAD INSTALL GUIDE
DOWNLOAD CAD MODEL	CAD	ENGAGED CAD DISENGAGED CAD	CAD

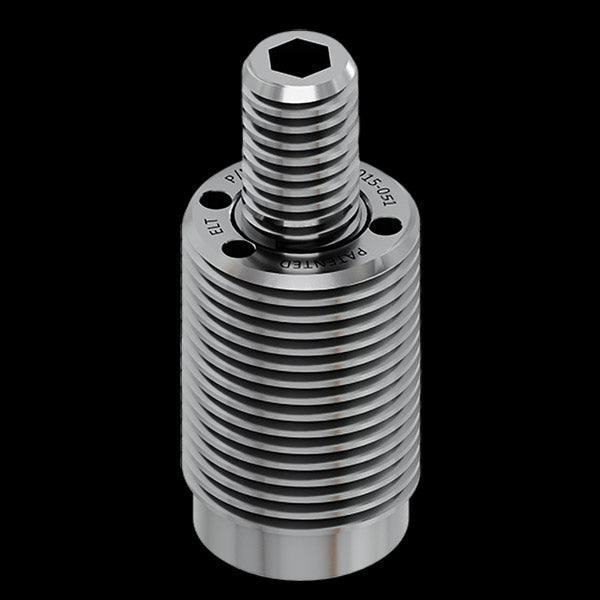

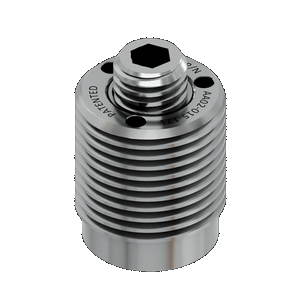

SKU: Select Above	AA02-015-121	AA02-015-051	AA03-015-061
INSERTION TOOL	AA02-004-004	AA02-004-004	AA03-004-004
STUD	1/2-13	1/2-13	1/2-13
ENAGAGEMENT	.286"	.802"	.600"
HEX SIZE	1/4"	1/4"	1/4"
HOUSING	1"-12 LH	1"-12 LH	1 1/4"-12 LH
HOUSING LENGTH	1.150"	1.650"	1.470"
MINOR DIAMETER	.905"	.905"	1.149"
MIN. PLATE SIZE	1.25"	1.75"	1.570"
TORQUE	64 ft. lbs.	64 ft. lbs.	64 ft.lbs.
MAX TENSILE STRENGTH	11,000 lbs.	11,000 lbs.	14,000 lbs.
MATERIAL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
DOWNLOAD INSTALL GUIDE
DOWNLOAD CAD MODEL	CAD	CAD	CAD
