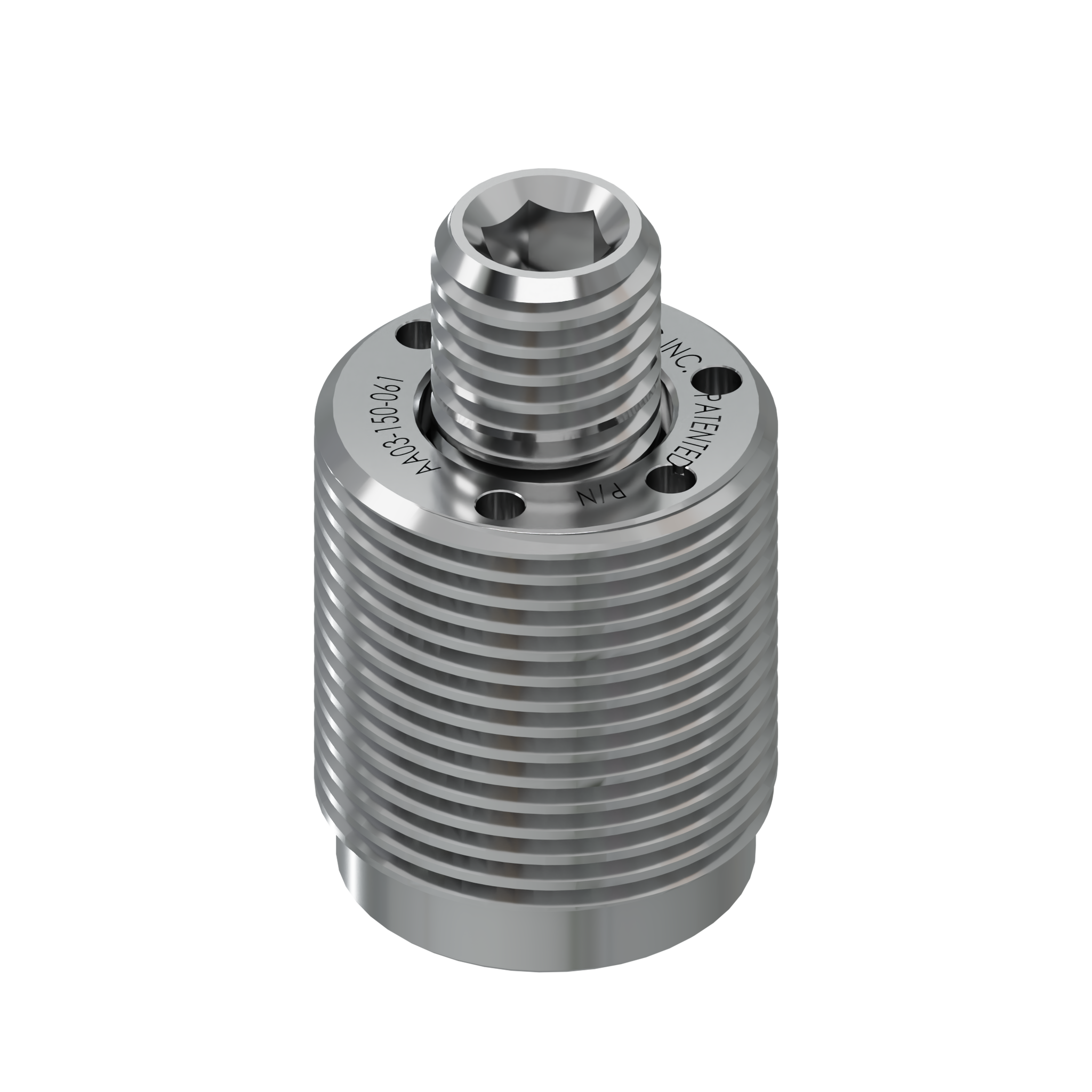

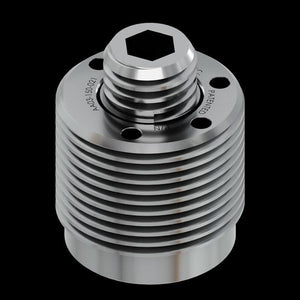

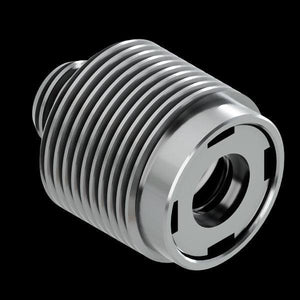

5/8in. AA03 STYLE INVERT-A-BOLT™ FASTENERS
HEAVY-DUTY FASTENER
Quantity Discounts:
| 25+ | $100 |
| 50+ | $150 |
| 100+ | $250 |
| 200+ | $800 |
| 500+ | $2,500 |
DESCRIPTION
Are you in need of a workholding solution that can handle larger loads and tougher materials with ease? The 5/8in. AA03 STYLE INVERT-A-BOLT™ Fasteners are designed to meet these challenges head-on, offering a versatile and high-torque solution for your machining needs. Let's dive deeper into the features and benefits of this innovative workholding solution:
- High Torque Capability: These fasteners are engineered to handle substantial torque, making them ideal for applications where bigger loads and harder metals are the norm. This capability ensures secure workpiece clamping, even under demanding machining conditions.
- Interchangeability: The AA03 body style features a 5/8" stud, allowing for interchangeability between different sizes within a single hole type. This adaptability simplifies setup changes, reduces downtime, and optimizes machining efficiency.
- Versatile Material Compatibility: These fasteners are not limited to a single material type. They are suitable for use with a wide range of materials, including aluminum, steels, titanium, and exotics. This versatility ensures that you can rely on them for various machining projects, enhancing their cost-effectiveness.
- Exceptional Durability: Crafted from high-quality materials and precision-engineered, these fasteners are built to withstand the rigors of CNC machining. Their durability ensures consistent performance and long-term reliability.
- Reduction in Machining Costs: By providing high torque capability, interchangeability, and versatile material compatibility, these fasteners contribute to reduced machining costs. They help prevent errors, reduce material waste, and ultimately save time and money.
The 5/8in. AA03 STYLE INVERT-A-BOLT™ Fasteners are the go-to choice for machinists looking for a robust workholding solution that can handle larger loads, tougher materials, and provide flexibility in their machining operations. Whether you work with aluminum, steels, titanium, or exotics, these fasteners are designed to meet your workholding needs with precision and efficiency. Elevate your CNC machining with this versatile and high-torque workholding solution.
LINKS:
➔ View INVERT-A-BOLT Video Playlist
AVAILABLE SIZES
|
SKU |
AA03-150-021 |
AA03-150-031 | AA03-150-061 |
|
INSERTION TOOL |
AA03-004-004 | AA03-004-004 | |
|
STUD |
5/8"-11 |
5/8"-11 | 5/8"-11 |
|
ENGAGEMENT |
.385" |
.385" | .600" |
|
HEX SIZE |
5/16" |
1/4" | 5/16" |
|
HOUSING |
1 1/4"-12 LH |
1 1/4"-12 LH | 1 1/4"-12 LH |
|
HOUSING LENGTH |
1.150" |
1.150" | 1.470" |
|
MINOR DIAMETER |
1.139" |
1.139" | 1.139" |
|
PLATE SIZE |
1.25" |
1.25" | 1.50" |
|
TORQUE |
100 ft.lbs. |
100 ft.lbs. | 100 ft.lbs. |
|
MATERIAL |
STAINLESS STEEL |
STAINLESS STEEL | STAINLESS STEEL |
|
INSTALL GUIDE |
 |
|
|
|
CAD |
CAD | CAD |
