LIGHT/MEDIUM DUTY WORKHOLDING FASTENER

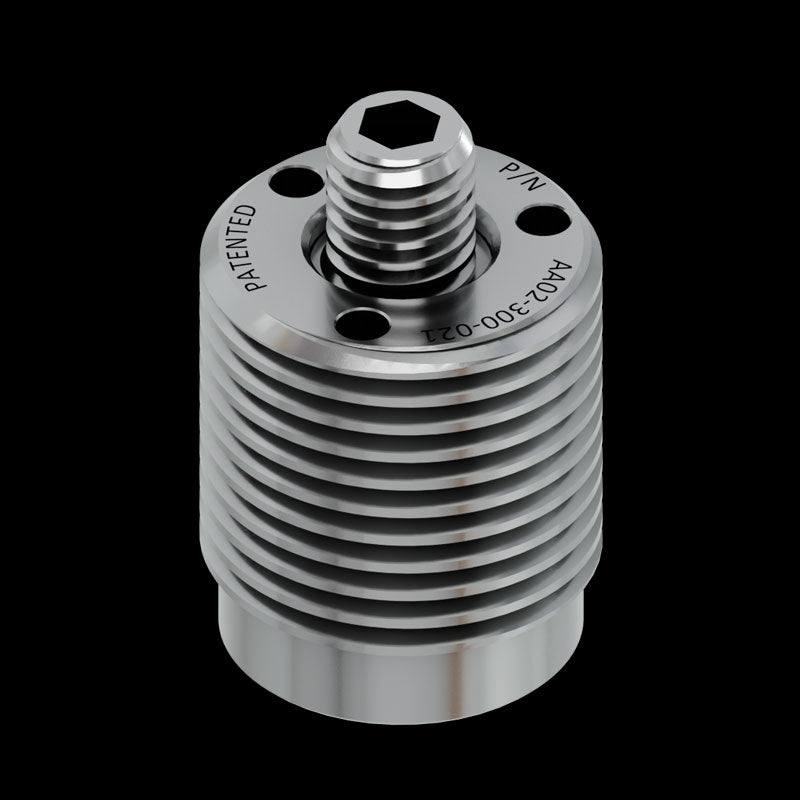

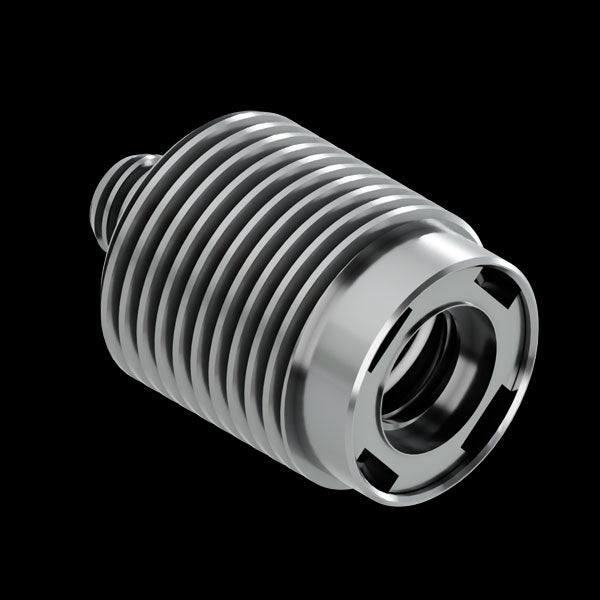

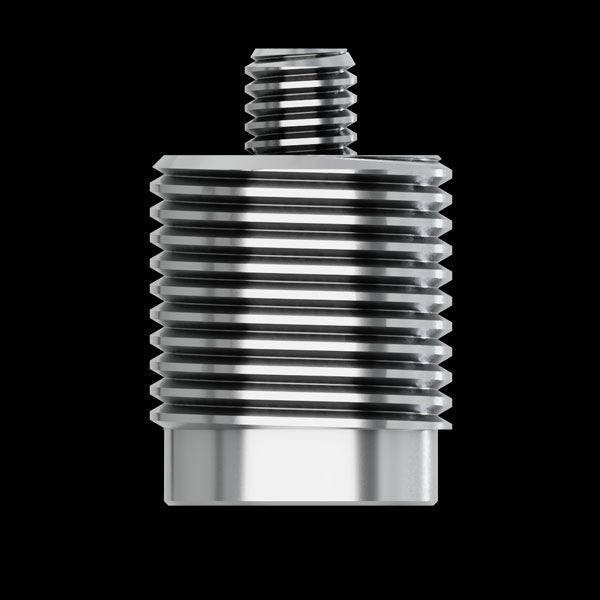

Are you in need of versatile workholding solutions for your CNC machining projects? Look no further than our 3/8" Invert-a-Bolt Fasteners, available in two distinct body styles, AA02 and AA07. Here's why these fasteners stand out as essential tools for your workholding needs:

Interchangeability with AA02: The AA02 style is compatible with ½" fasteners, ensuring interchangeability and flexibility in your workholding setups. Achieve seamless transitions between different workpiece sizes with ease.

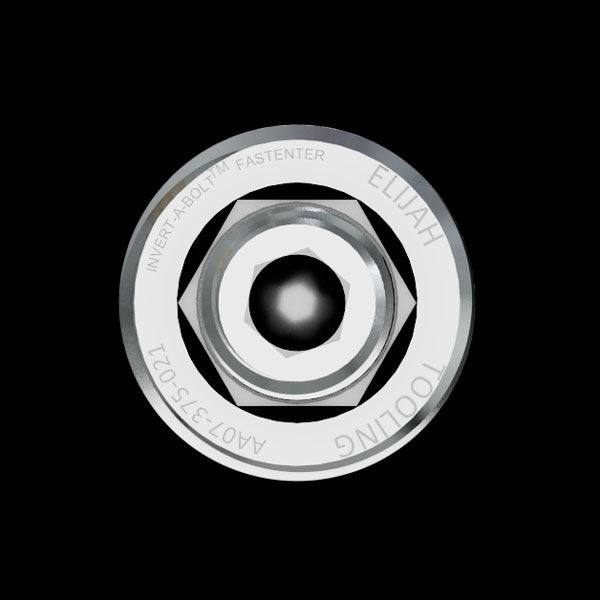

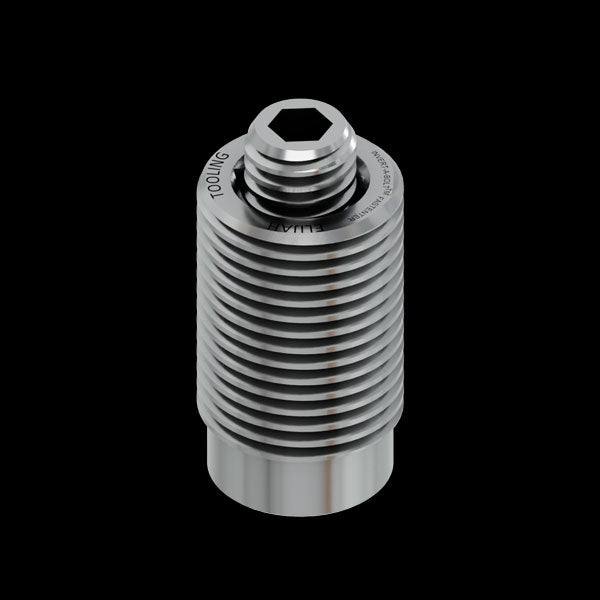

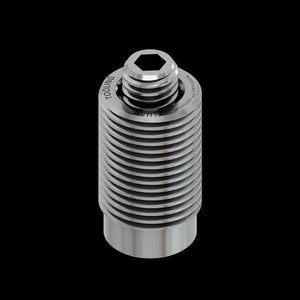

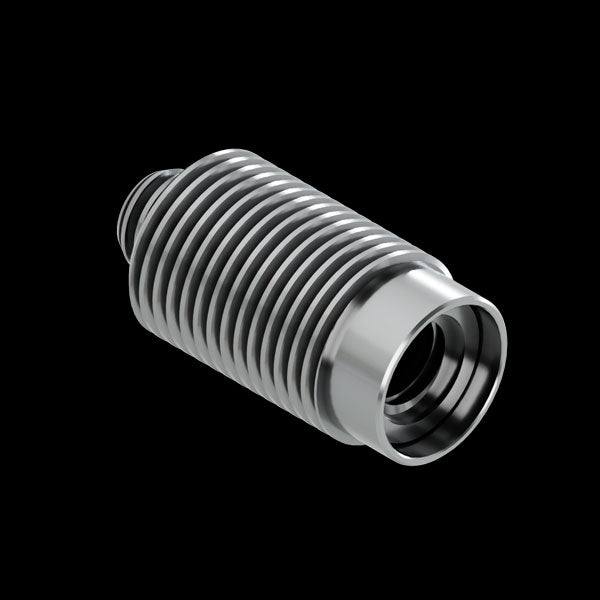

Space Optimization with AA07: The AA07 body style is designed with a compact footprint, enabling denser pattern arrangements and reducing the size of stock material needed. This feature is invaluable when you need to maximize your machining efficiency and material usage.

Insertion Tool Not Required (AA07): The AA07 style eliminates the need for an insertion tool, simplifying your workholding process and saving you valuable time. This makes the AA07 an exceptionally user-friendly solution.

Versatile Material Compatibility: Both AA02 and AA07 styles are suitable for a range of materials, including plastics, aluminum, and some steels. Whether you're working on various projects or materials, these fasteners have you covered.

Enhance your CNC workholding with the 3/8" AA02 and AA07 Style Invert-a-Bolt Fasteners. Achieve interchangeability, optimize space, and simplify your workholding processes, all while maintaining compatibility with a variety of materials. These fasteners are the key to efficient and versatile workholding in your machining endeavors.

Links:

Installation Video

➔ View Full INVERT-A-BOLT Video Playlist

AVAILABLE SIZES

SKU: Select Above	AA02-300-021	AA07-375-021
INSERTION TOOL	AA02-004-004	No insertion tool required*.
STUD	3/8"-16	3/8"-16
ENGAGEMENT	.350"	.210"
HEX SIZE	3/16"	3/16"
HOUSING	1"-12 LH	11/16"-16 LH
HOUSING LENGTH	1.150"	1.150"
MINOR DIAMETER	.905"	.616"
PLATE SIZE	1.25"	1.25"
TORQUE	28 ft.lb.	28 ft.lb.
MATERIAL	STAINLESS STEEL	STAINLESS STEEL
INSTALL GUIDE
CAD	CAD	CAD

*Use a 10mm hex wrench for installation.
